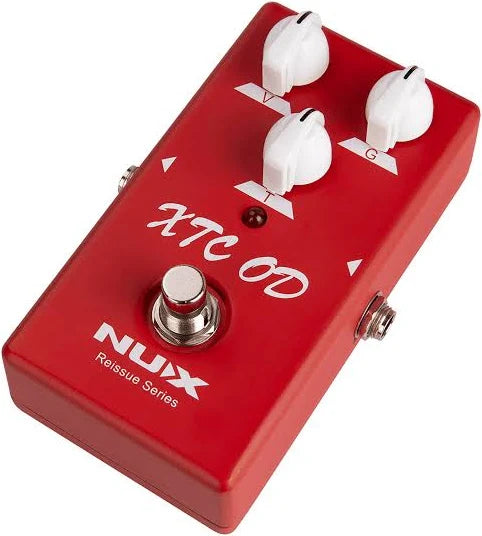

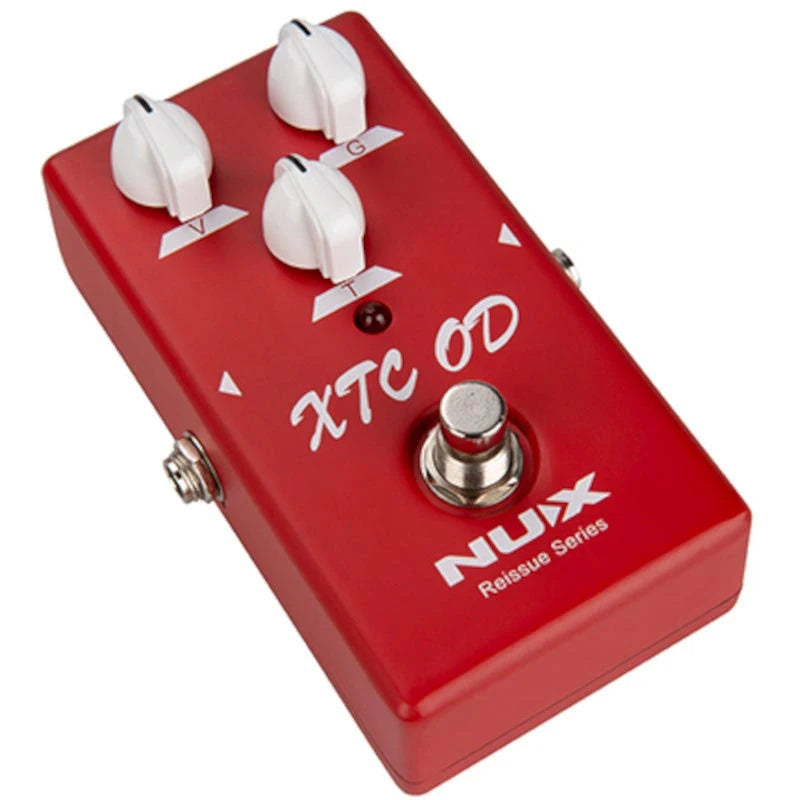

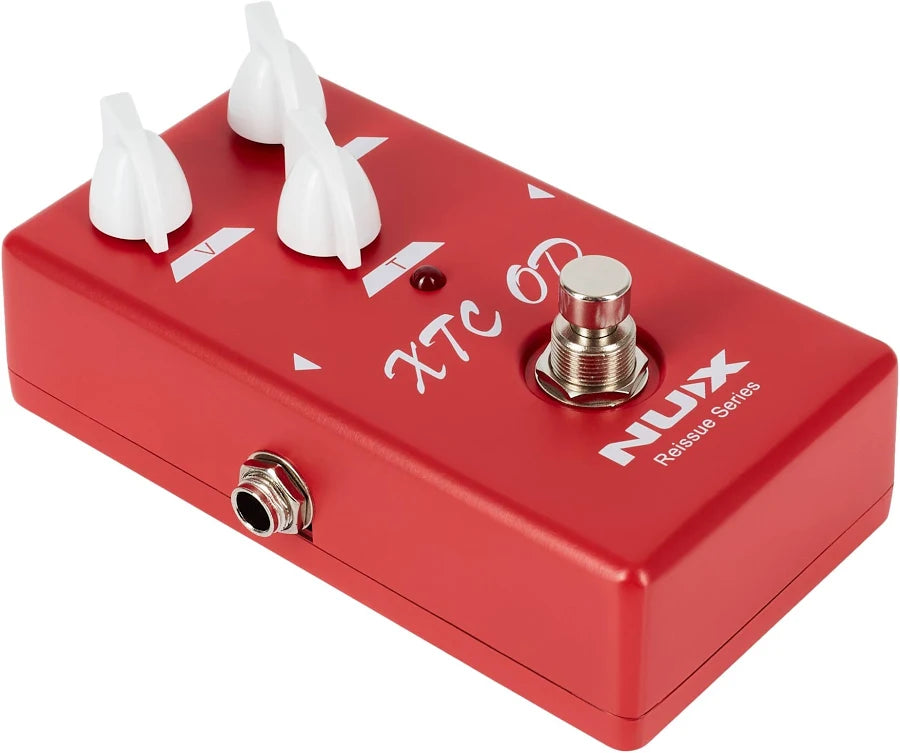

NUX XTC OD Overdrive Guitar Effects Pedal

Item Location

This item is available for Collection or Delivery from:
Cash Generator Kirkcaldy, 105 High Street, Kirkcaldy, KY1 1LW
Email: kirkcaldy@cashgenerator.co.uk
Telephone: 01592644388

Item Condition

Condition: Pre-Owned: Grade B
Very Good Condition. Minor wear and tear.

Item Description

The NUX XTC-10 Reissue Series XTC OD overdrive effect pedal delivers the distinctive overdrive sound characteristic of the red channel from a renowned boutique amplifier. With its rich harmonic content and responsive dynamics, this pedal is well-suited for blues and classic rock applications, making it a valuable addition to any effects setup. It features a pure analog circuit for smooth, dynamic distortion and includes a true-bypass switch for maintaining signal integrity when disengaged. Controls consist of level, gain, and tone knobs for precise sound shaping. Technical specifications include an input impedance of 1M ohms, output impedance of 10K ohms, and power requirements of a 9V battery or external 9V DC AC adapter with a minimum 300mA current. The pedal measures 121 mm in length, 77 mm in width, and 48 mm in depth, with a weight of 230 grams. This model is part of the Reissue Series, succeeding previous versions while maintaining the core tonal characteristics that made the original design notable. The construction emphasizes durability with a compact footprint suitable for pedalboard integration. The color may vary slightly between production batches, as visible in product images. This overdrive pedal is designed for guitarists seeking authentic, responsive overdrive tones with straightforward control and reliable performance.

• Amplifier Type: Pure Analog Circuit
• Product Type: Effects Pedal
• Subtype: Overdrive pedal
• Type Highlights: Pure Analog Circuit
• Effect Type: Overdrive
• Included Effects: Distortion, Overdrive
• Modeling Capability: Pure analog amplifier simulation
• Effects Controls: Knobs (Level, Gain, Tone), True-bypass Hardware Switching
• Footswitch Compatibility: True bypass footswitch, No (foot switch connection)
• EQ: Tone
• Tone Highlights: Tone
• Tone Character: Iconic red channel amp distortion
• Voicing: Vintage Tube Amp Tone
• Inputs: 1M Ohms (Input impedance)
• Outputs: 10K Ohms (Output impedance)
• Connectivity Highlights: Wi-Fi, Bluetooth, Effects Loop, Headphone Output, USB
• Number of Channels: 1
• Performance Highlights: Fast response
• Stereo/Mono: Mono
• Audio Processing Highlights: Gain control, Tone control
• Color: Red
• Design Highlights: Standard housing size
• Dimensions: 121(L) X 77(W) X 48(D) mm
• Weight: 230 g
• Instrument Type: Electric guitar
• Typical Genres: Classic Rock, Blues
• Top Use Cases: Studio arrangement, Stage arrangement
• Typical Users: UNISEX, ADULT
• Tubes: No
• Configuration: Pedalboard (Pedal)
• Hardware Footswitch: True-bypass Hardware Switching
• Housing Material: Metal
• Included Accessories: No power adapter
• Logo: NUX
• Power Source: 9V battery
• Battery Type: 9V battery
• Voltage: 9V DC (regulated minimum 300mA)
• Power Usage: <20 mA (current draw)
